Technical Sheet
Name | Data |

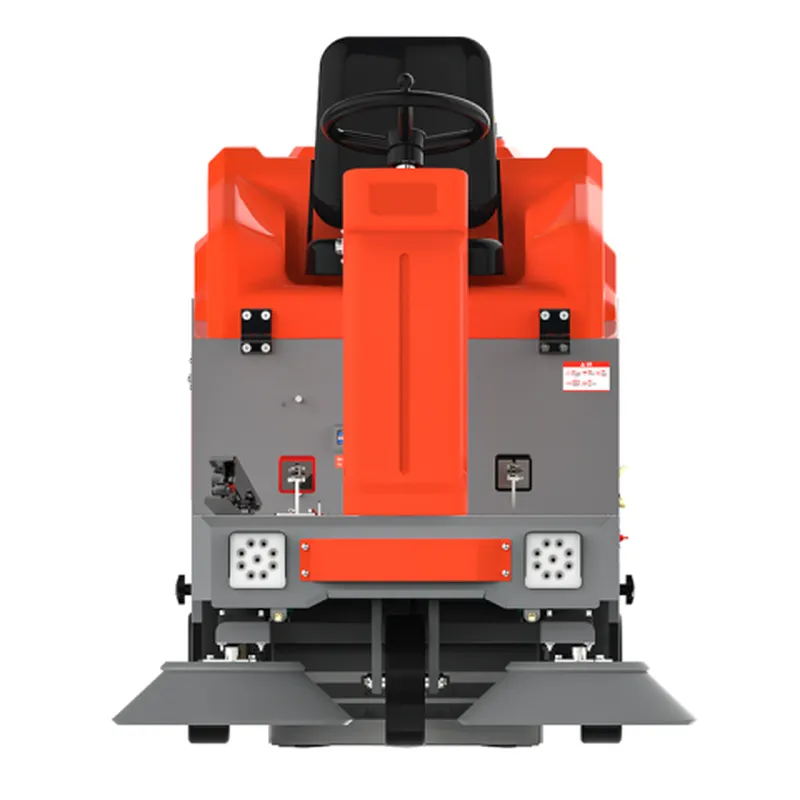

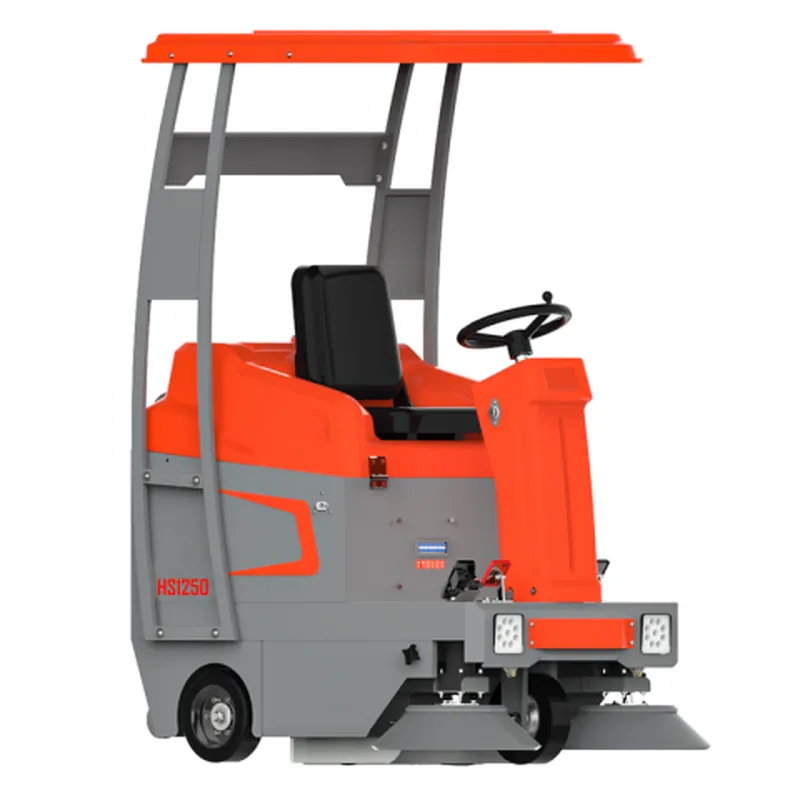

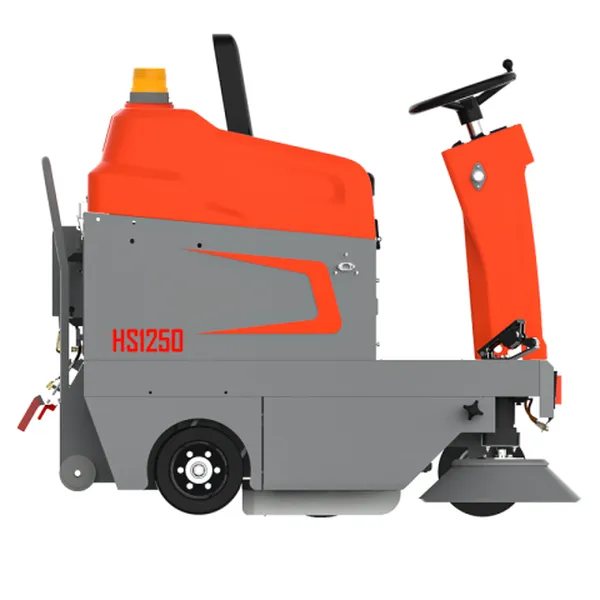

Model | HS1250 |
Sweeping width | 1250mm |
Main brush size | 500*300mm |
Working efficiency | 0-6600m²/h |
Driving speed | 0-6km/h |
Water tank capacity | 60L |
Trash tank capacity | 80L |
Working speed | 3-4h |
Side brush diameter | 460mm*2 |
Filter area | 4.2m² |
Battery | Lithium&Lead-acid battery |
Battery | 48V/50Ah |
Driving motor | 800W |
Main brush motor | 650W |
Side brush motor | 90W*2 |
Rod up*down motor | 20W*2 |
Electric dust motor | 120W |
Fan motor | 95W |
Weight | 320kg |
Machine size | 1590*1120*1330mm |
Packing size | 1660*1180*1475mm |
Minimum rotary radius | 260mm |
